Accuracy: Class C/ R160

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C) and hot water (90°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Brass

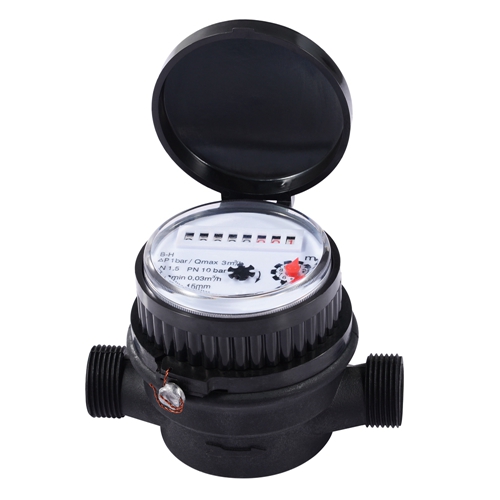

Accuracy: Class C/ R160

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C)

Sizes: DN15  to 20 mm (1/2"-3/4”).

Body material: Nylon Plastic

Accuracy: Class C/ R160

Pre-equipped, Compatible with multiple communication modules

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C) and hot water (90°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Brass

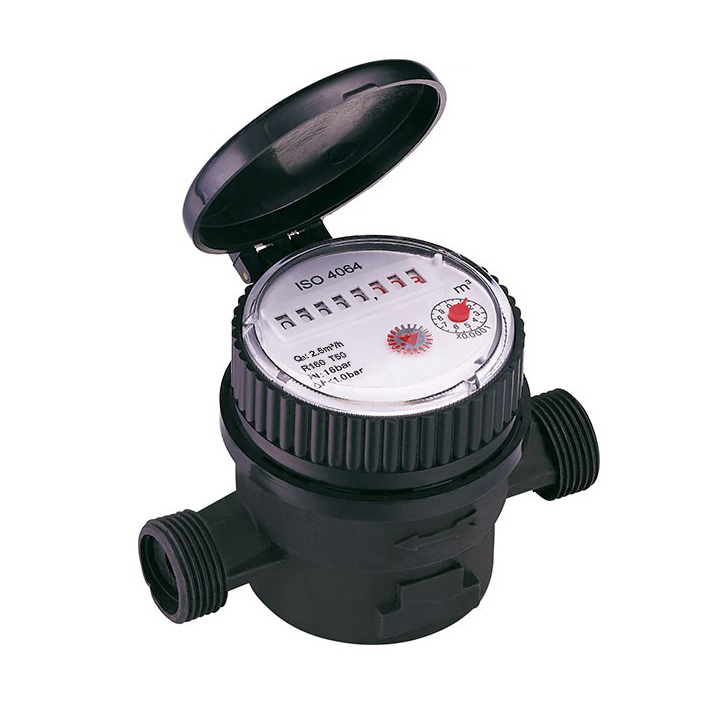

Accuracy: Class C/ R160

Pre-equipped, Compatible with multiple communication modules

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Composite plastic

1. Model No.: LXC-15G-40G

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R400/R250

4. Frequency:LoRa/ LoRaWAN 865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

5. Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-15E-20E

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Frequency: LoRa/ LoRaWAN 865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

4. Valve control: Valve close/ open

5. Detection functions

6. Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-15B-25B

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R250

4. Frequency: LoRa/ LoRaWAN   865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

5. Material: Composite Plastic

6. Unit: L/ m3/ Gal (Optional)

1.Model No.: LXC-15F-40F

2.Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3.Internal Lithium battery can be replaced

4.Waterproof standard: IP 68

5.Frequency: LoRa/ LoRaWAN 865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

6.Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-50M-500M

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R160

4. Frequency: LoRa/ LoRaWAN 865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

5. Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-50H-500H

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R160

4. Frequency: LoRa/ LoRaWAN 865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

5. Unit: L/ m3/ Gal (Optional)

Accuracy: Class C/ R160

Compatible with multiple communication modules

Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C) and hot water (90°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Brass

Accuracy: Class C/ R160

Compatible with multiple communication modules

Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Composite plastic

Accuracy: Class C/ R160

Compatible with multiple communication modules

Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

LoRaWAN Frequency: EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Multi-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C) and hot water (90°C)

Sizes: DN15  to 20 mm (1/2” – 3/4”).

Body material: Brass

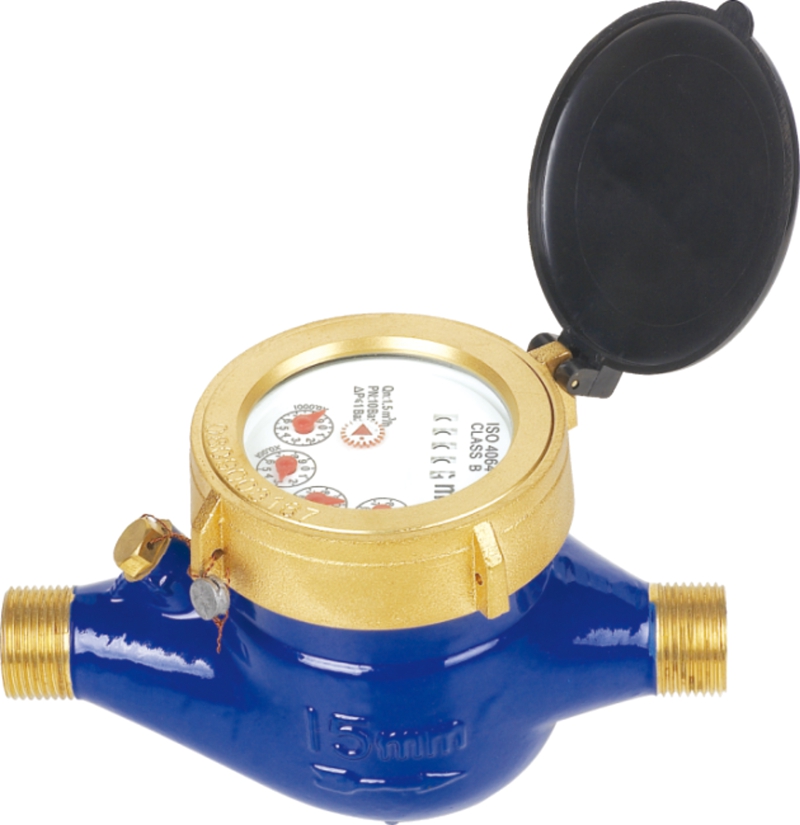

Multi jet, Dry-dial

Material body: Brass.

Sizes: DN15 to 20mm, (1/2” – 3/4”), Available for cold water (50°C)

Accuracy: Class B/ Class C/ R80/ R100/ R160

Universal use. Easy for interchange & maintenance

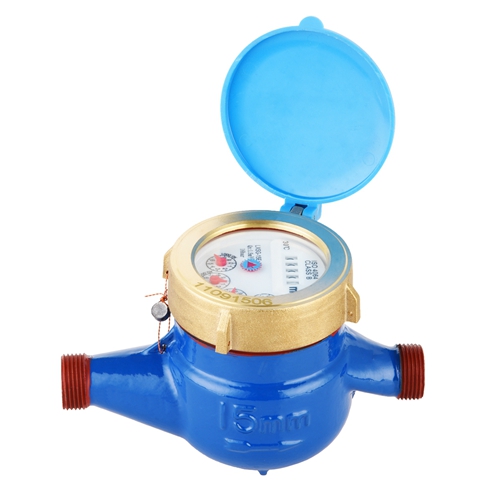

Multi jet, Dry-dial

Material body: Brass

Sizes: DN15 to 50mm, (½” – 2”), Available for cold water (40°C), hot water(90°C)

Accuracy: DN15(½”) Class B / Class C / R160 / R200

DN20-50mm,(¾” – 2”)  Class B / R80 / R100

Universal use. Easy for interchange & maintenance

Multi-jet, Dry dial

Body material: Nylon Plastic

Sizes: DN15 to 50mm( 1/2” - 2”), available for cold water (40°C)

Accuracy: DN15(½”)  Class B / Class C / R160 / R200

DN20-50mm,(¾” – 2”)  Class B / R80 / R100

Pre-equipped for Pulse Emitter

Multi-jet, Dry dial

Body material: Nylon Plastic, Brass Threads

Sizes: DN15 to 50mm( 1/2” - 2”), available for cold water (40°C)

Accuracy: DN15(½”)  Class B / Class C / R160

DN20-50mm,(¾” – 2”)  Class B / R80 / R100

Easy for interchange & maintenance

Multi jet, Dry-dial

Material body: Cast gray iron / Ductile cast iron

Size: DN15 to 50mm, (½” – 2”), Available for cold water (40°C), hot(90°C)

Accuracy: ISO 4064 Class B Standard

Universal use. Easy for interchange & maintenance

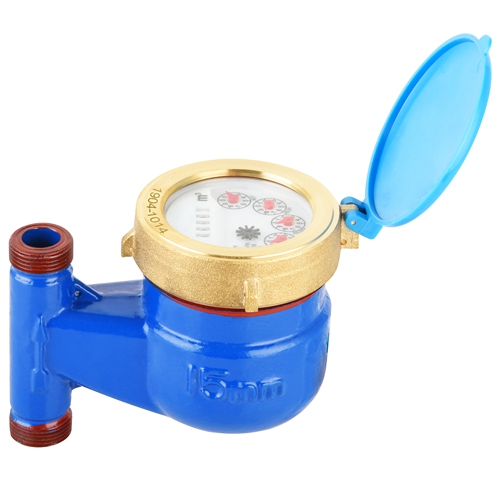

Multi-jet, Dry-dial, vertical type

Body material: Gray Cast Iron

Sizes: DN15  to 25 mm (½” – 1”).

Available for cold water (30°C) and hot water (90°C),

Accuracy: ISO4064, Class B standard

Custom appearance & functional solutions available,

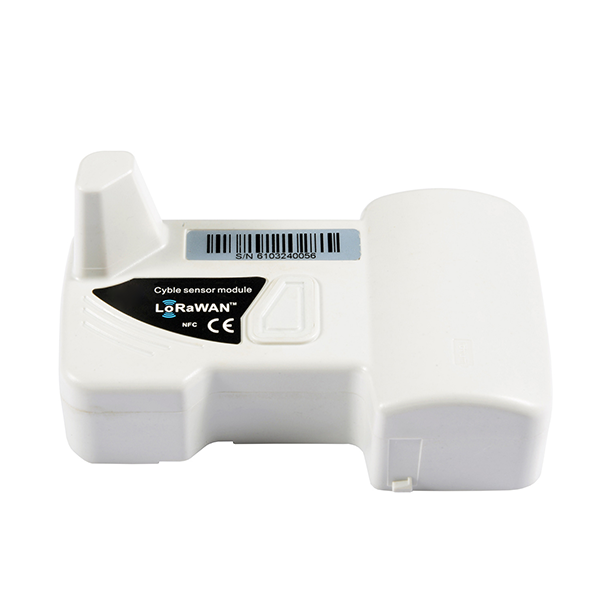

Can Adapt To Multiple Pre-equipped Single Jet Water Meters

Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

Waterproof: IP68

Custom appearance & functional solutions available,

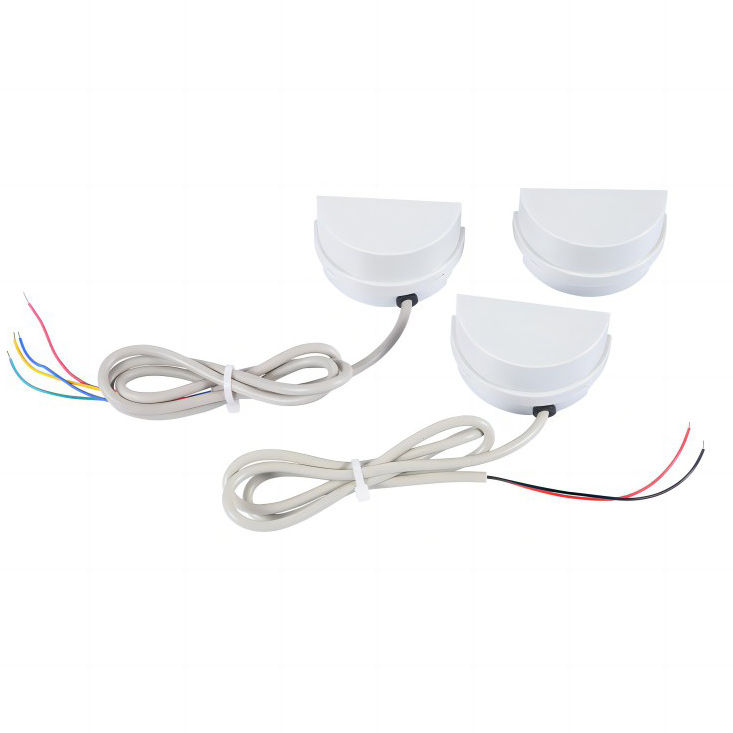

Rebuild / Upgrade your Modular Water Meter

Can Adapt To Multiple Pre-equipped Multi Jet Water Meters

Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

Frequency:LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Waterproof: IP68

Multi Jet Dry type

Material body: Brass

Sizes: DN15  to  50mm, (½” – 2”), Available for cold water (30°C), hot water (90°C)

Accuracy: DN15(½”) Class B / Class C / R160

                 DN20-50mm,(¾” – 2”)  Class B

Universal use. Easy for interchange & maintenance

1 liter/pulse,    10 liters/pulse,     0.1 gallon/pulse,     1 gallon/pulse

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (40°C)

Sizes: DN15 (1/2”).

Body material: Nylon Plastic

Accuracy: Class B or R80

Pulse output 10 L/Pulse

Woltman type with pulse output

Transmission sensor: Reed switch

Body: Gray cast iron or ductile cast iron for option

Sustain its measuring accuracy and numeral display

Unique design and advanced testing measures ensure a secure transmission

Maximum distance between connected meter and a data collector: 150m

Applicable to various kinds of data collector

Accuracy: Class C, R160/ R200

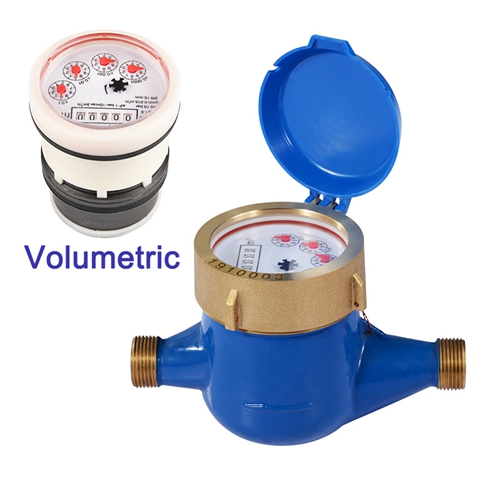

Volumetric Piston Type

Material body: Brass

Size: DN15 to 25mm( 1/2" -1"), Available for cold water(40°C)

Easy for interchange & maintenance

Volumetric Piston Type

Material body: Brass

Size: DN15 to 20mm( 1/2" -3/4"), Available for cold water(40°C)

Accuracy: Class C, R160/ R200

Easy for interchange & maintenance

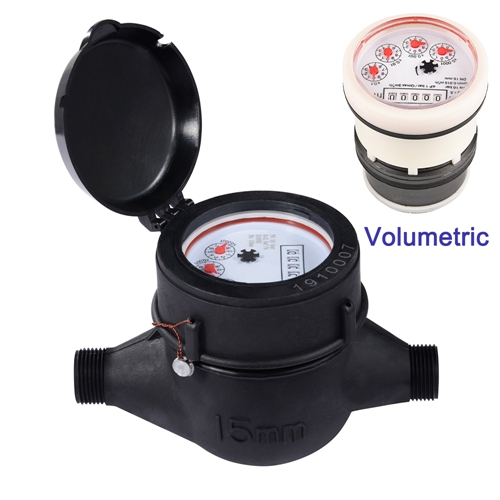

Volumetric Piston Type

Material body: Nylon Plastic

Size: DN15 to 20mm( 1/2" -3/4"), Available for cold water(50°C)

Accuracy: Class C, R160/ R200

Easy for interchange & maintenance

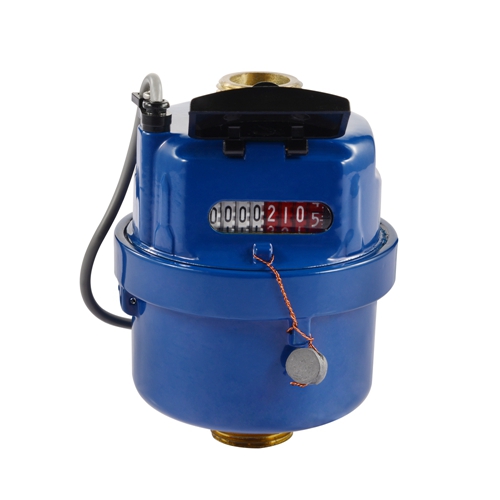

Pre-equipped for pulse-emitter

Volumetric Piston Type

Material body: Brass

Size: DN15-DN20mm ( 1/2"-3/4" ), Available for cold water(50°C)

Accuracy: Class C,  R160/ R200

Easy for interchange & maintenance

Volumetric Piston Type

Material body: Nylon plastic

Size: DN15-DN20mm ( 1/2" -3/4"), Available for cold water(50°C)

Accuracy: Class C,  R160/ R200

Easy for interchange & maintenance

Accuracy: Class C, R160/ R200

Volumetric Piston Type

Material body: Brass

Size: DN15 to 20mm( 1/2" -3/4"), Available for cold water(40°C)

Easy for interchange & maintenance

1 liter/pulse or 10 liters/pulse

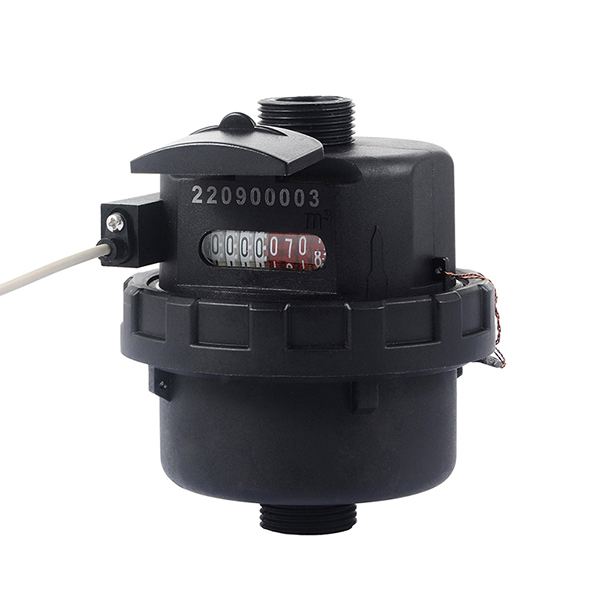

Volumetric Piston Type

Material body: Nylon Plastic

Size: DN15 to 20mm( 1/2" -3/4"), Available for cold water(40°C)

Accuracy:Class C, R160/ R200

Easy for interchange & maintenance

Pulse Output Reading, 1 liter/pulse or 10 liters/pulse

Dry dial with magnetic transmission

Available for cold water (30°C) and hot water (90°C)

Sizes: DN50  to 200 mm (2” – 8”)

Vacuum sealed register ensures the dial kept free from fog

Accuracy: ISO 4064 Class B standard

Easy for interchange and maintenance

Dry dial with magnetic transmission

Available for cold water (40°C) and hot water (90°C)

Sizes: DN50  to DN500 mm (2” – 20”)

Vacuum sealed register ensures the dial kept free from fog

Accuracy: ISO 4064 Class B standard

Easy for interchange and maintenance

Dry dial, magnetic transmission.

Sizes: DN50 to 300mm  (2” – 12”), cold water(30°C)

Tangential meter for irrigation use, make DIN and ANSI standard.

Pre-equipped for impulse emitter device.

Accuracy: Class A, suitable for dirty water

Multi jet, Dry-dial, wet dial and liquid sealed for option

Material body: Cast gray iron or ductile iron for option

Size 50mm, ( 2”), Available for cold water (30°C), hot(90°C)

Measuring accuracy conform to ISO 4064 class B Standard

Universal use. Easy for interchange & maintenance

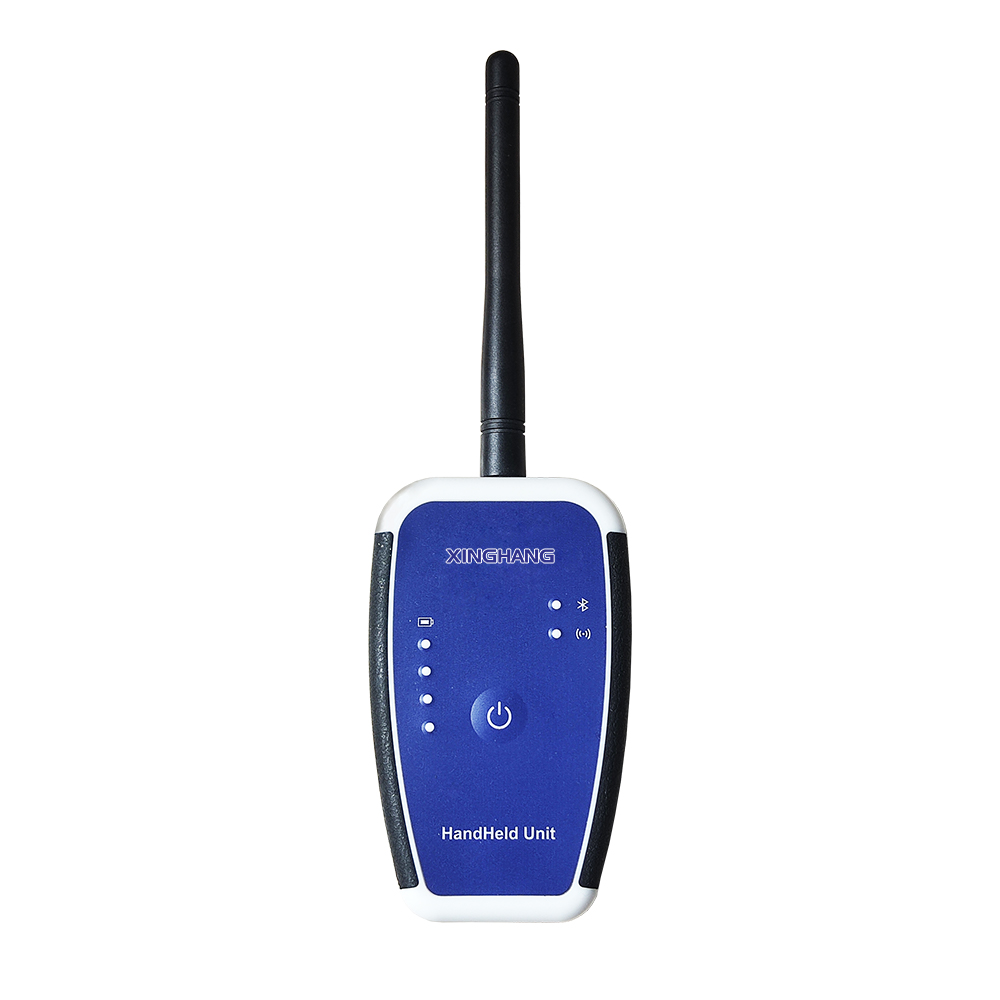

Handheld Unit designed for LoRaWAN water meters.

It seamlessly integrates with  "Walk-by Meter Reading" App, compatible with both Android and iOS systems.

Mobile phones and handheld device are connected by Bluetooth

RHF2S208 is a new generation LoRaWAN GW developed by XINGHANG which supports Full Duplex comunication with up to 16 channels (SX1301 Multi SFs). The GW integrates one 1.2GHz ARM Cortex-A53 CPU which run Linux OS. And also 1x or 2x SX1301 to provide LoRa transmit and receive functionality. SX1301 is a high performance LoRa processor developed by Semtech. The 2 x SX1301 full duplex hardware version will extend the network capacity to 4x compare to the traditional 8 channels half duplex one.

The 8 Channels LoRaWAN Indoor Gateway Communication Device RHF2S024 is an easy installation indoor gateway based on LoRaWAN protocol, which is embedded with Semtech’s high performance multi-channel transceiver SX1308 and MTK platform.
