1. DN15-DN25
2. Communication: M-BUS, RS-485, Pulse output, LoRa, LoRaWAN
3. Accuracy: R250
4. Frequency: LoRa/ LoRaWAN 868MHz, 915MHz
5. Material: Composite Plastic
6. Unit: L/ m3/ Gal (Optional)

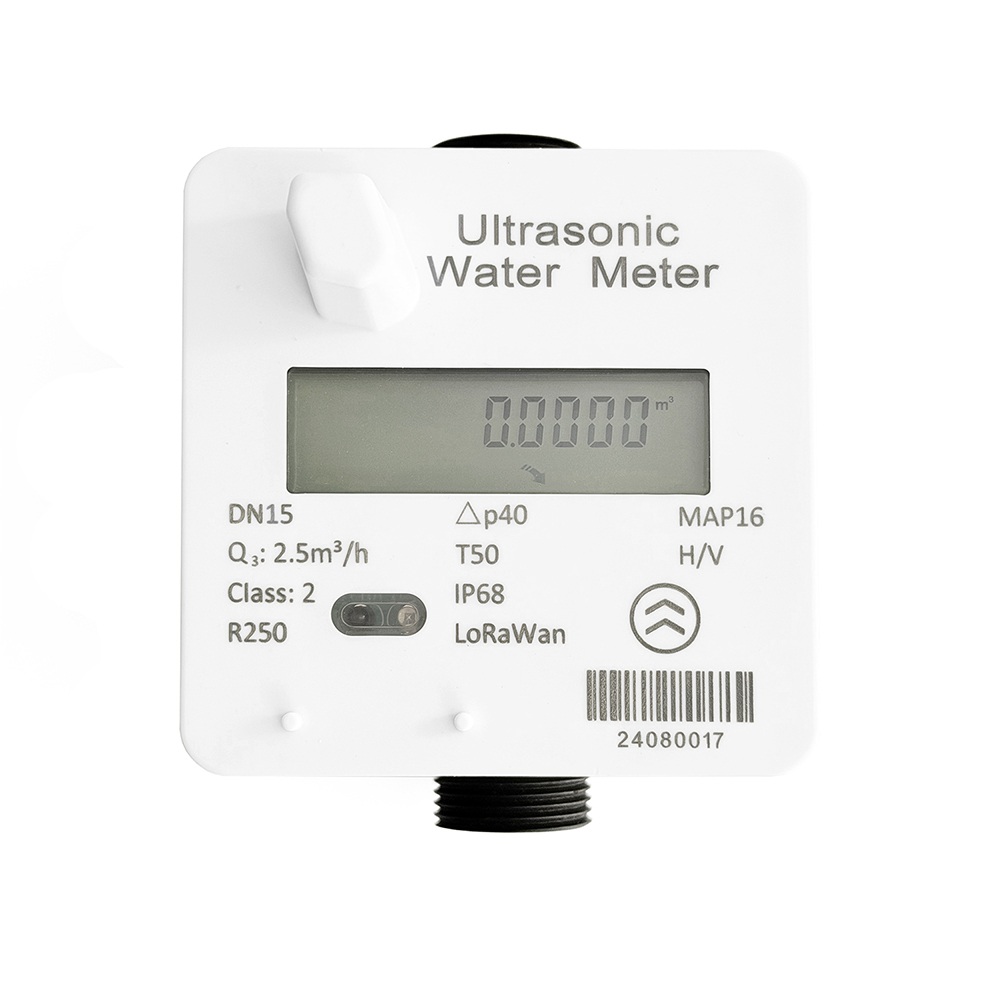

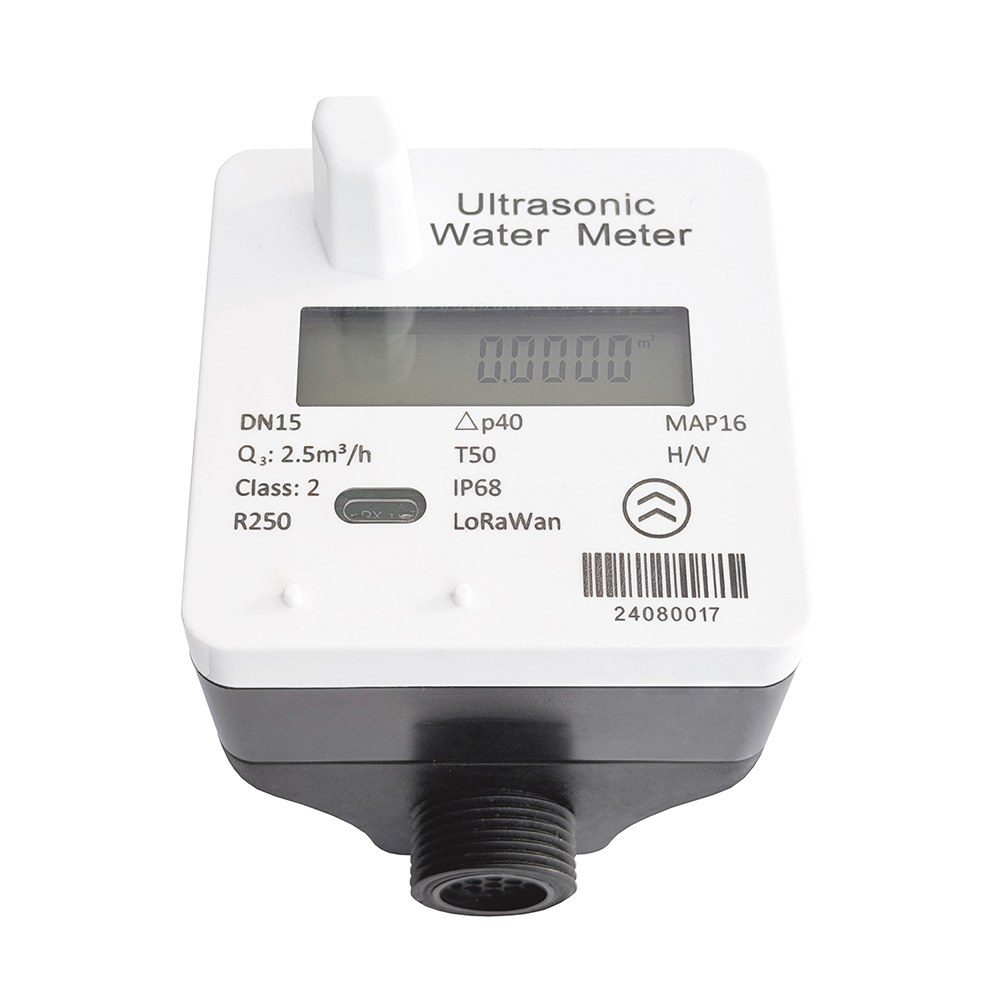

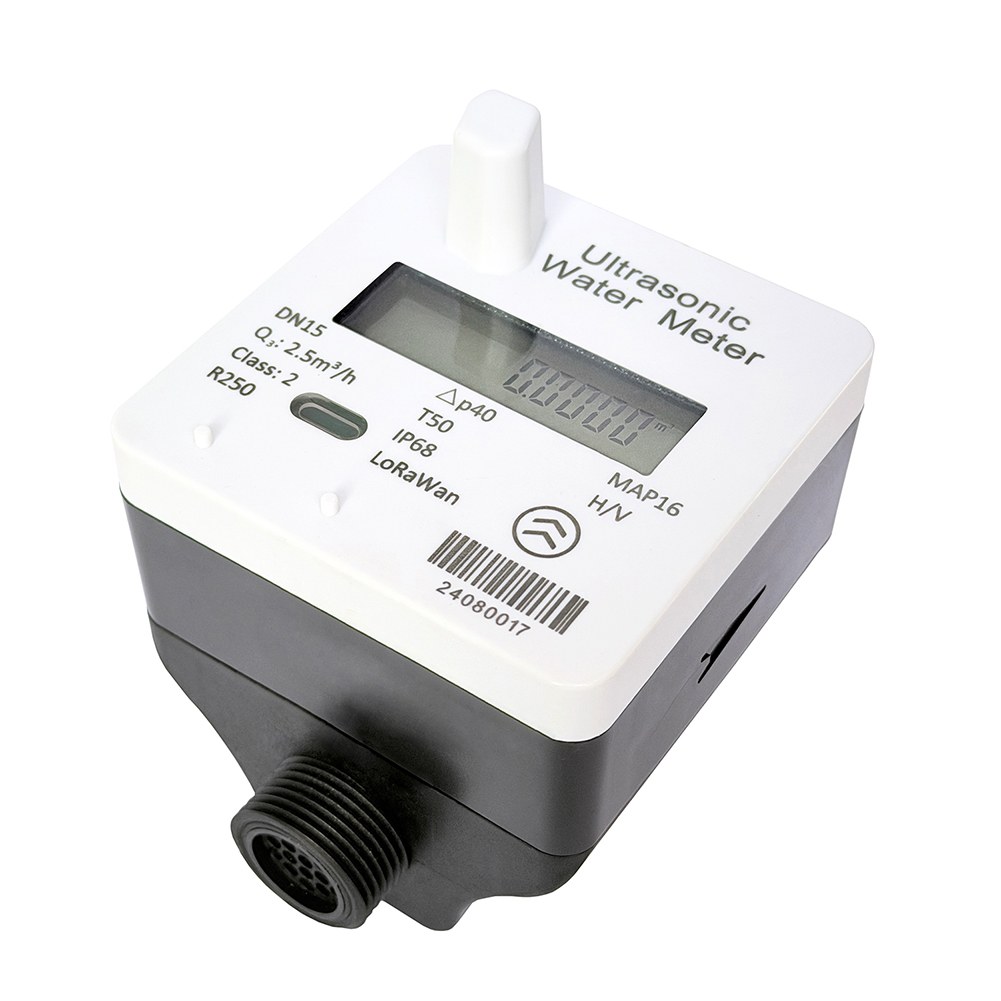

Smart ultrasonic water meter measurement of water consumption in households, apartment buildings and small commercial properties
TECHNICAL SPECIFICATION:
Item | Parameter |
Meter Type | Ultrasonic Water Meter |
Nominal Diameter (mm) | DN15~DN25 |
Q3/Q1 | R250 |
Measurmedium | Water, homogeneous liquid, and filled with measured pipes. |
Accuracy class | Class 2 |
Water pressure class | 1.6MAP ( 16 bar) |
Pressure-loss class | Δp40 |
Temperature class | T50 |
Installation position | H/V |
The installation sensitivity class | U10/D5 |
Electromagnetic class | E1 |
Environmental class | C |
Key-press | Magnetic induction key |
Types of Indicating device | LCD:9-digits, 0~99999.9999m³ |
Menu Contents | Instantaneous flow (m3/h), cumulative flow (m3), screen detection, table address, cumulative working time (h), date (year/month/day), caliber, software version |
Communication Interface | Photoelectric |
Power Source | Lithium battery ER26500(replaceable) |
Battery Voltage &Capacity | 3.6V , 8500mAh |
Life span | 10 years. |
IP code | IP68 |
Storage Temperature | -25℃~+55℃ |
Cable length | 1.0 m |
FLOW RATE:
Parameter | Unit | Data value | ||
Nominal Diameter | DN15 | DN20 | DN25 | |
Start flow rate | m3/h | 0.003 | 0.005 | 0.005 |
Qmin(Q1) | 0.010 | 0.016 | 0.0252 | |
QTransitional(Q2) | 0.016 | 0.0256 | 0.040 | |
Qn/permanent(Q3) | 2.5 | 4.0 | 6.3 | |
Qoverload(Q4) | 3.125 | 5.0 | 7.875 | |
Range ratio=Q3/Q1 | 250 | |||
Temperature | T50 | |||
Battery life | Year | >10 | ||
DIMENSION
Nominal Diameter( mm ) | DN15 | DN20 | DN25 |
Thread | G3/4B | G1B | G1 1/4B |
L(mm) | 110 | 130 | 160 |
H(mm) | 80 | 85 | 90 |
W(mm) | 85 | 85 | 85 |
WORKINGCONDITION:
Watertemperature: 0~50℃
Waterpressure: ≤16 Bar
