Prepaid water meter
Valve adopts rotary-wing construction, with small switch torture distance
One-card, one meter with encipherment protection, security guaranteed
Valve automatically shut off when impacted by strong magnetic field action
Features:
1. RF card water meter use prepaid way to achieve the new management mode of “purchase first, then use ”
2 .Show the different level price of the water, one card can be used for several meters
3. Double reading display: mechanical and electronic reading
4. Unique battery protection
5. Stable performance, wide application, Class B accuracy
6. Low power consumption, long service time
7. Electronic part is vacuum sealed
8. Anti-jamming and resist exterior magnet interference
Technical Parameters
1. Flow rate
Model no. | Nominal diameter DN(mm) | Turndown ratio | Overload flow Q4 | Permanent flow Q3 | Transitional flow Q2 | Min flow Q1 |
M3/h | ||||||
LXSGK-15 | 15 | R80 | 3.125 | 2.5 | 0.05 | 0.03125 |
LXSGK-20 | 20 | R80 | 5.0 | 4.0 | 0.08 | 0.05 |
LXSGK-25 | 25 | R80 | 7.875 | 6.3 | 0.126 | 0.07875 |
2. Maximum Permissible Error
1) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%
2) If the temperature≤30℃, in the upper zone from Q2 inclusive up to and including Q4 is ±2%
3) If the temperature>30℃, in the upper zone from Q2 inclusive up to and including Q4 is ±3%
Note: Technical data conform to ISO4064 standard
Electrical Technical Data for RF Card Water Meter
Working current | Low voltage protection | Quiescent current | Battery voltage | Nominal Pressure | water volume per 1 pulse signal |
<20mA | 2.8V | <15uA | 3.6V | 3.0V~3.6V | 100L |
3.Working conditions:
Water temperature
≤50℃ for cold water meter
≤90℃ for hot water meter
Working pressure: ≤16bar
Relative humidity: ≤90%

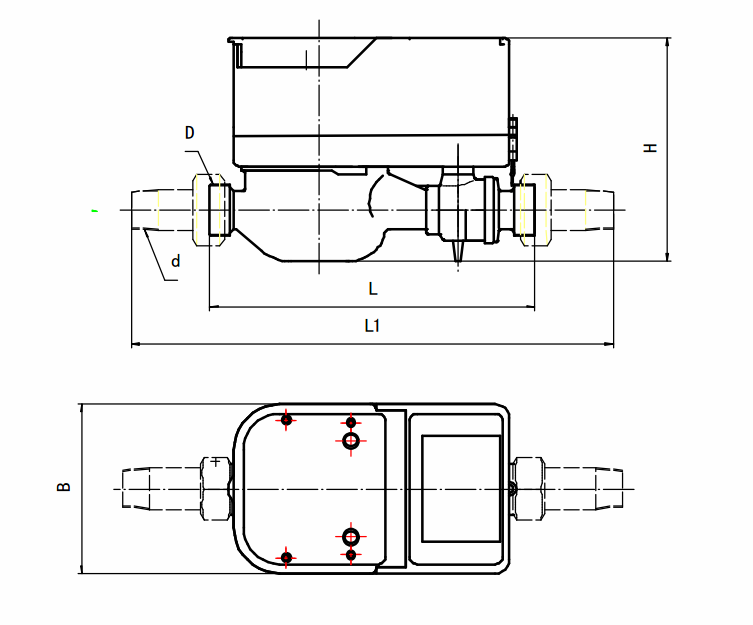

Size | Length L | Length L1 | Width B | Height H | Connecting Thread | |
mm | ||||||
15 | 165 | 259 | 86 | 117 | G3/4B | R1/2 |
20 | 195 | 299 | 86 | 117 | G1B | R3/4 |
25 | 225 | 345 | 86 | 117 | G1 1/4B | R1 |
